Selection Bias & Missing Data Challenge

Creating a Statistics Meme: Write Your Own Functions

🎨 Selection Bias & Missing Data Challenge

📊 Challenge Overview

Your Task: Create a four-panel statistics meme demonstrating selection bias. You’ll write three Python functions yourself to complete the workflow, then assemble them into a professional meme.

Deliverables:

  1. Three Python functions you write yourself:
    • step4_create_block_letter.py - Create a block letter “S” matching image dimensions
    • step5_create_masked.py - Apply the letter mask to the stippled image
    • create_meme.py - Assemble all components into the four-panel meme
  2. A complete index.qmd file that uses all functions to generate your meme
  3. Your final statistics meme (as a PNG file) using your own image

Key Learning: This challenge teaches you to write modular Python functions and assemble them into a complete workflow. You’ll learn to structure code professionally and create a memorable visual representation of selection bias.

The Problem: Visualizing Selection Bias

Selection bias occurs when observed data isn’t representative of the population. Your meme will demonstrate this concept through visual metaphor:

  • Reality: Your original image represents the true population
  • Your Model: Your stippled image represents your data collection (sampling)
  • Selection Bias: A bold letter “S” represents a systematic pattern of missing data
  • Estimate: Stippled image with “S” mask applied shows the biased estimate—what you see when selection bias removes data points in a systematic pattern

Key Concept: Images are simply matrices—2D arrays where each value represents a pixel (0.0 = black, 1.0 = white). Your stippled image is a matrix with black dots (data points) on a white background. Selection bias removes some of these pixels (data points) in a systematic pattern (the “S”), creating a biased estimate.

Key Insight: When data is missing in a systematic pattern (not random), your estimates become biased. The “S” shape makes it visually obvious that the missing data follows a pattern, just like real selection bias in statistics.

Example Output

Here’s what your final meme should look like:

Four-panel statistics meme showing Reality (original image), Your Model (stippled version), Selection Bias (letter S), and Estimate (masked stippled image)

Your challenge: Create a similar meme using your own image, with all code hidden in your index.qmd file. The final output should show only the meme image and a brief 1-3 sentence explanation of how it demonstrates selection bias.

Workflow Overview

This challenge is organized into discrete steps. Steps 1-3 are provided for you. You must write Steps 4-6 yourself:

  1. Step 1: Prepare black and white image (provided) ✅
  2. Step 2: Create stippled image using blue noise stippling (provided) ✅
  3. Step 3: Create tonal analysis (optional refinement step, provided) ✅
  4. Step 4: Create block letter “S” matching image dimensions (YOU WRITE THIS) ⚠️
  5. Step 5: Create masked image by applying the letter mask to the stippled image (YOU WRITE THIS) ⚠️
  6. Final: Assemble all components into the four-panel meme (YOU WRITE THIS) ⚠️

Note: Step 3 is optional but recommended. It helps you understand your image’s brightness distribution and refine the stippling parameters in Step 2 for better results.

Understanding the Workflow

This challenge uses a modular design where each step is implemented as a discrete function in a separate file. This structure provides several benefits:

Modular Design Benefits

  1. Modularity: Each step can be modified independently
  2. Reusability: Functions can be used in other projects
  3. Testability: Each function can be tested separately
  4. Clarity: The workflow is easy to understand and follow
  5. Maintainability: Changes to one step don’t affect others

Function Files

Steps you’ll use (provided): - step1_prepare_image.py: Image loading and preprocessing - step2_create_stipple.py: Blue noise stippling algorithm - step3_create_tonal.py: Tonal analysis (optional)

Steps you’ll write: - step4_create_block_letter.py: Block letter generation ⚠️ - step5_create_masked.py: Mask application ⚠️ - create_meme.py: Final assembly and visualization ⚠️

Supporting functions (provided): - importance_map.py: Computes importance map for stippling - stippling_functions.py: Core stippling algorithm functions

Step 1: Prepare Image

Load an image, convert to grayscale, and resize to appropriate dimensions while maintaining aspect ratio.

Image size: (375, 250) (no resizing needed)
Final image shape: (375, 250) (should be 2D for grayscale)

Original image prepared for processing

Step 2: Create Stippled Image

Generate a blue noise stippling pattern from the prepared image. This creates a pattern of dots that preserves visual information while maintaining good spatial distribution.

Importance map computed
Generating blue noise stippling pattern...
Generated 7500 stipple points
Stipple pattern shape: (375, 250)
Number of stippled points (0.0 values): 7500
Number of background points (1.0 values): 86250

Blue noise stippling pattern

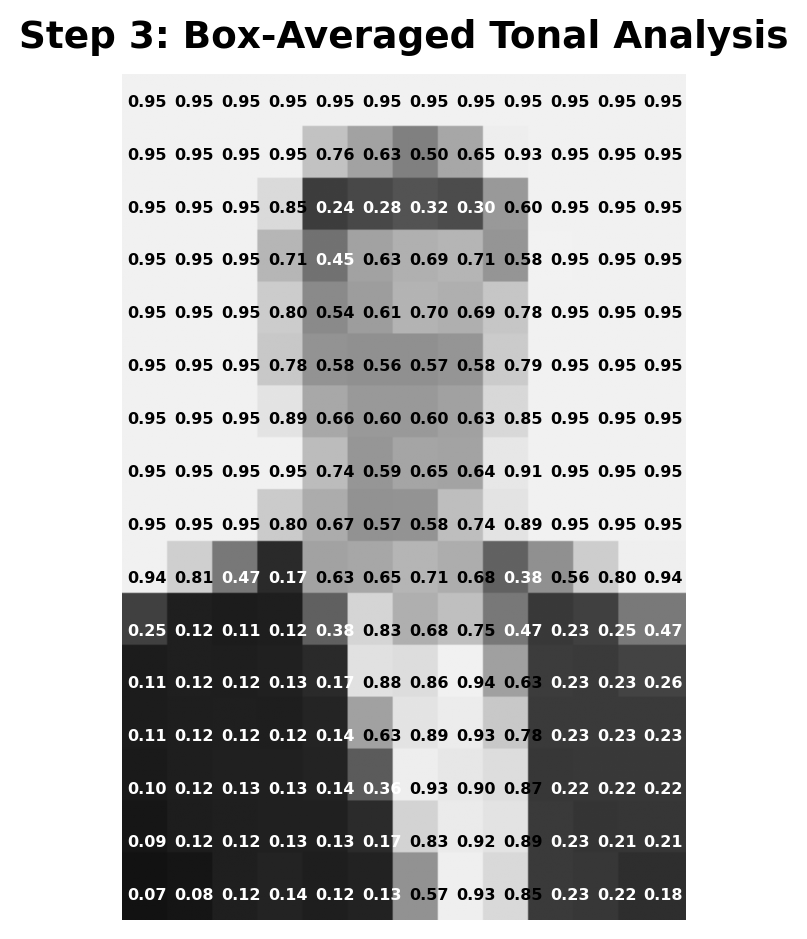

Step 3: Create Tonal Analysis (Optional Refinement Step)

🔧 Optional Refinement Step

Step 3 is optional but highly recommended! It creates a box-averaged tonal analysis that helps you understand the brightness distribution across your image. Use this information to tune the stippling parameters in Step 2 for better results.

How to use it: - Analyze the tonal distribution to identify key brightness ranges - Adjust extreme_threshold_low and extreme_threshold_high based on your image’s tone distribution - Tune mid_tone_center to match important features (e.g., skin tones around 0.7) - Refine extreme_downweight based on how much you want to reduce stipples in extreme regions

Create a tonal analysis by dividing the image into a grid and computing average brightness in each section. This visualizes the distribution of tones and helps identify which brightness ranges are most important.

Created tonal analysis: grid 16×12
Tonal statistics: mean=0.636, std=0.321
Tone range: [0.072, 0.945]

Box-averaged tonal analysis showing brightness distribution

📊 Tonal Statistics for Parameter Tuning:
  Mean brightness: 0.636
  Standard deviation: 0.321
  Brightness range: [0.072, 0.945]

💡 Tuning Tips:
  - If mean < 0.4: Image is dark, consider lowering extreme_threshold_low
  - If mean > 0.6: Image is light, consider raising extreme_threshold_high
  - If std > 0.2: High contrast, may need stronger extreme_downweight
  - Use mid_tone_center around 0.64 to emphasize average tones

Step 4: Create Block Letter “S” ⚠️ YOUR TASK

🎯 Your Challenge: Write step4_create_block_letter.py

Task: Create a function create_block_letter_s() that generates a block letter “S” matching your image dimensions.

Requirements: - Function signature: create_block_letter_s(height: int, width: int, letter: str = "S", font_size_ratio: float = 0.9) -> np.ndarray - Returns a 2D numpy array (height × width) with values in [0, 1] - The letter should be black (0.0) on a white background (1.0) - The letter should be centered and scaled appropriately to fit within the image - Use PIL/Pillow’s ImageDraw or similar to render the letter

Hints: - You can use PIL.Image and PIL.ImageDraw to draw text - Try multiple font paths (e.g., system fonts) if one doesn’t work - Make the letter bold and large enough to be clearly visible - The letter represents the “selection bias” pattern in your meme

Your code should go in a file called step4_create_block_letter.py. Once you’ve written it, you’ll use it like this:

Step 5: Create Masked Image ⚠️ YOUR TASK

🎯 Your Challenge: Write step5_create_masked.py

Task: Create a function create_masked_stipple() that applies the block letter mask to the stippled image.

Requirements: - Function signature: create_masked_stipple(stipple_img: np.ndarray, mask_img: np.ndarray, threshold: float = 0.5) -> np.ndarray - Returns a 2D numpy array with the same shape as the input images - Where the mask is dark (below threshold), remove stipples (set to white/1.0) - Where the mask is light (above threshold), keep the stipples as they are - This creates the “biased estimate” by systematically removing data points

Hints: - The mask image has values in [0, 1] where 0.0 = black (mask area) and 1.0 = white (keep area) - Use numpy boolean indexing or np.where() to apply the mask - The threshold determines what counts as “part of the mask”

Your code should go in a file called step5_create_masked.py. Once you’ve written it, you’ll use it like this:

Create the Final Statistics Meme ⚠️ YOUR TASK

🎯 Your Challenge: Write create_meme.py

Task: Create a function create_statistics_meme() that assembles all four panels into a professional-looking meme.

Requirements: - Function signature: create_statistics_meme(original_img: np.ndarray, stipple_img: np.ndarray, block_letter_img: np.ndarray, masked_stipple_img: np.ndarray, output_path: str, dpi: int = 150, background_color: str = "white") -> None - Creates a 1×4 layout (four panels side by side) - Each panel should be labeled: “Reality”, “Your Model”, “Selection Bias”, “Estimate” - Save the result as a PNG file - Make it look professional with good spacing, labels, and layout

Hints: - Use matplotlib’s subplots() or GridSpec to create the layout - Add text labels above or below each panel - Consider adding a border or background color - Use high DPI (150-300) for publication quality - Make sure all images are the same size or handle resizing appropriately

Your code should go in a file called create_meme.py. Once you’ve written it, you’ll use it like this:

Your Final Submission

Complete Checklist

To complete this challenge, you must:

  1. ✅ Use Step 1 to prepare your own image (with your own image file)
  2. ✅ Use Step 2 to generate a stippled image using blue noise stippling
  3. ⭐ Optionally use Step 3 to analyze tonal distribution and refine Step 2 parameters (recommended)
  4. ⚠️ Write Step 4: Create step4_create_block_letter.py to generate the block letter “S”
  5. ⚠️ Write Step 5: Create step5_create_masked.py to apply the mask
  6. ⚠️ Write Final Step: Create create_meme.py to assemble the four-panel meme
  7. ✅ Create a complete index.qmd that uses all functions (with code hidden)
  8. ✅ Generate your final meme using your own image
  9. ✅ Include a brief explanation (1-3 sentences) of how the meme demonstrates selection bias

Final Output Requirements

Important: All code should be hidden (echo: false) in your final index.qmd output. The rendered HTML should show only: - The final meme image - A brief explanation (1-3 sentences) of how it demonstrates selection bias

Template for Final Section

Here’s a template for your final section:

Example Explanation

Your explanation should be 1-3 sentences. Here’s an example:

This meme demonstrates selection bias by showing how systematic missing data patterns distort our understanding of reality. The original image (Reality) represents the true population, while the stippled version (Your Model) shows our data collection. When selection bias removes data points in a systematic “S” pattern, the resulting estimate becomes biased and no longer represents the true population, just as missing data in real-world studies can lead to incorrect conclusions.

Tips for Success

  1. Image Selection: Choose an image with good contrast for best stippling results
  2. Use Tonal Analysis: Run Step 3 to understand your image’s brightness distribution, then refine Step 2 parameters
  3. Function Design: Write clean, well-documented functions with clear parameter types and return values
  4. Test Incrementally: Test each function separately before integrating them
  5. Professional Output: Make your meme look polished with good labels, spacing, and layout
  6. Code Organization: Keep your functions in separate .py files as specified
  7. Documentation: Add docstrings to your functions explaining parameters and return values

Conclusion

By completing this challenge, you’ll have created a memorable visual representation of selection bias that demonstrates how systematic missing data patterns can distort our understanding of reality. The skills you’ve practiced—writing modular Python functions, image processing, and creating professional visualizations—are directly applicable to real-world data analysis projects.

As you work with real datasets, remember the lesson of this meme: when data is missing in a systematic pattern rather than randomly, your estimates become biased. Recognizing and addressing selection bias is crucial for drawing valid conclusions from your data.
